New 2026 Northwood Arctic Fox Grande Ronde 36-5VS

Fifth Wheel

Stock #28635

Fairfield, CA

1 of 28

+28

Sale Price: $99,989
MSRP: $138,099
YOU SAVE: $38,110

Payments From: $719 /mo.

Sleeps 4
3 Slides
Rear Living Area

Kitchen Island

40ft Long
14,520 lbs

See All Specs

Specifications

Sleeps	4	Slides	3
Length	39 ft 8 in	Ext Width	8 ft 6 in
Ext Height	13 ft 5 in	Hitch Weight	2830 lbs
GVWR	16300 lbs	Dry Weight	14520 lbs
Cargo Capacity	1780 lbs	Fresh Water Capacity	88 gals
Grey Water Capacity	67 gals	Black Water Capacity	65 gals
Tire Size	LT235/85R16	Furnace BTU	35000 btu
Available Beds	King	Refrigerator Size	14 cu ft
Convection Cooking	Yes	Cooktop Burners	3
Number of Awnings	1	Axle Weight	11690 lbs
LP Tank Capacity	80 lbs	Water Heater Capacity	16 gal
Water Heater Type	DSI Gas/Electric with Quick Recovery	AC BTU	15000 btu
TV Info	LR 42" 110 LED Smart TV	Awning Info	14' 12V LED w/Adjustable Pitch
Axle Count	2	Shower Type	Shower w/Seat
Electrical Service	30 amp	VIN	4N15V3626T0158673

Description

Northwood Arctic Fox Grande Ronde fifth wheel 36-5VS highlights:

Triple Slides
Fiberglass Shower with a Seat
68" Tri-Fold Sofa
Free-Standing Table with Chairs

Wherever you decide to camp, you can call it home with this fifth wheel in tow! The dual opposing slides in the main living area will create an open floorplan, and the large kitchen island with a double sink is sure to be a big hit with the chef of your group. They will also have a three burner cooktop and 1.5 cu. ft. over-the-range convection microwave to cook meals plus a refrigerator to store leftovers. The theater seating across from the entertainment center with a fireplace will make your space feel more like home, and there is a free-standing table with four chairs where you can dine together. Your guests can sleep on the rear tri-fold sofa, while you take the king bed slide out in the front bedroom. You'll also enjoy a full-width quad slide wardrobe with an optional washer/dryer, a dresser, and bench seating with a hamper to keep your room tidy. And don't overlook the spacious full bath with a fiberglass shower and dual bath sinks; how convenient!

Each Northwood Arctic Fox Grande Ronde fifth wheel is built on a Northwood Ironhorse chassis with a wide-body floorplan and offers a true four-season RV with high density block foam insulation and heated holding tanks. The interior offers solid surface countertops, a glass shower enclosure, slow rise night shades, and an interior command center to easily access your units functions in one convenient location. Each fifth wheel also includes a TruRest mattress, USB ports on both sides of the bed, and a Starlite window with a shade to get a view of the stars! There is an exterior shower outside, along with a SolX 4 - 400 watt solar package, slam latch luggage doors, an exterior convenience center, and many more amenities!

Features

Standard Features

Northwood Built Ironhorse Chassis
Fully Welded, Thick-Wall Aluminum Frame Construction
Corona Treated Fiberglass
Laminated, Multi-Layered Substrate Walls & Floor
High Density Block Foam Insulation
Wide-Body Floorplan/MORryde Step Above w/StrutAssist
E-Z Lube Axles
Heavy Duty Greaseable Suspension / 2" Receiver Hitch
16" Aluminum Wheels / Tires & White Mod Spare
MORryde RPB Pin Box / 4 Point Leveling System (6 Point Leveling System; select models)
Ward-Linen Closet Slide / Flush Floor Super Slide
Four Seasons Insulation With R-18 Ceiling
R-15 Reflective Foil Insulation in Roof / Slides
Heated Holding Tanks / Cathedral Arched Ceiling
Aerodynamic One Piece Front Cap
2 Independently Switched LED Hitch Lights
Fiberglass Rear Cap / LED Cap Accent Lights
LED Interior & Exterior Lighting / Rear View Camera Ready
Exterior HD Ladder / SolX 4 – 400 Watt Solar Package
Exterior Convenience Center
SLAM Latch Luggage Doors
LPG Quick Connect & Black Water Flush System
Entry Door Friction Hinge
Exterior Shower /2 Afox Logo Director's Chairs
16 Gal DSI Gas/Elect Quick Recovery Water Heater
13.5m BTUAir Conditioner w/Condensation-Resistant Ducting
12V LED Awnig w/Adjustable Pitch HW
Electric Power Reel / Digital Thermostat/50 Amp Service
Outside Speakers/Battery Disconnect
Frameless Thermal Pane Windows w/Custom Wood Trim
Omni-Directional TV Antenna/Generator Ready / Satellite Ready
Exterior Security Lights
Interior Command Center
Roller Bearing Drawer Glides
Slow Rise Night Shades
32" 110 LED Smart TV &AM/FM Stereo w/Bluetooth
Smoke, LPG & CO Leak Detectors / Charge Wizard w/Li Switch
Free-Standing Table With 4 Chairs
Solid Surface Kitchen Countertops
1.5 Cu Ft Over-The-Range, Convection Micro w/Range Hood
Premium Fan Vent w/Remote/Tstat/Rain Sensor (Kitchen)
Solid Surface Bathroom Countertops w/SS Sink
Exhaust Only Premium Fan Vent – Bathroom
Porcelain, Foot-Pedal Toilet / Bath Skylight
Glass Shower Enclosure
Garden Pan / Bathroom Courtesy Light
Telescoping Lighted Vanity Mirror / Lock Box
NW TruRest Mattress w/UltraDeck Sleep System
Premium Fan Vent w/Remote/Tstat/Rain Sen (Bedroom)
Bedroom Starlite w/ Shade
USB Charging Ports & 110 Outlets on Both Sides of Bed

Options

32" 110V LED Smart TV Bedroom
Surround-Soundbar
Slide-Out Topper
Weatherguard Main Awning
2nd A/C (Low Pro 13.5K)--
Replaces Bdrm Fan Vent
50 Åmp Service Required
32"110V LED Smart TV Bedroom
15K Low Pro Air Conditioner w/Ducting
15K Air Conditioner w/ Ducting
Holding Tank Heat Pads (All Tanks)
PWR Dual Motor Sliding Stab Jacks, Rear
3.6 Onan LP Generator
5.5 Onan Gold LP Gen...
50 Amp Service Required
SolX 6 + 200 Watts of Solar
SolX 8 + 400 Watts of Solar
SolX 10 + 600 Watts of Solar
3000 Watt Inverter w/400AH Lithium Battery
400AH Lithium Battery
FoxForward Multi-plex System
100AH Lithium Battery
Winegard Carryout G2+
Sat Dish (DISH/DIRECT)
RV BBQ
Rear View Camera
Gateway Router

Please see us for a complete list of features and available options.

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Highly recommended!
We recently purchased a 2018 Forest River Travel Trailer here at Cordelia RV. My husband and I are very happy with the trailer we’ve chosen and the service we’ve recieved. Tim Grogg helped us with the purchase which went very quickly and smoothly. Tim and everyone from the Service Office, Financing

Ofelia
5 Star Rating!
Five Stars for Dan Pratt….Dan is the Man if you want to purchase an RV. We appreciated his low pressure, knowledgeable, honest, and willingness to answer all our questions. We love our new Outdoors Titanium RV. Dan is the Man at Cordelia RV Center.

Rick
Great experience!
My husband and I bought our first RV at Cordelia RV center. We were nervous at first- if it’s anything like buying a car I already knew my husband wouldn’t have the patience for it. When we arrived at the lot we were met by a salesman named Ed. He was very friendly and gave us our space and when we

Brenda

We are here to help, call us at
707-864-8700 or Contact Us

We are here to help!

Cordelia RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @707-864-8700 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

New 2026 Northwood Arctic Fox Grande Ronde 36-5VS

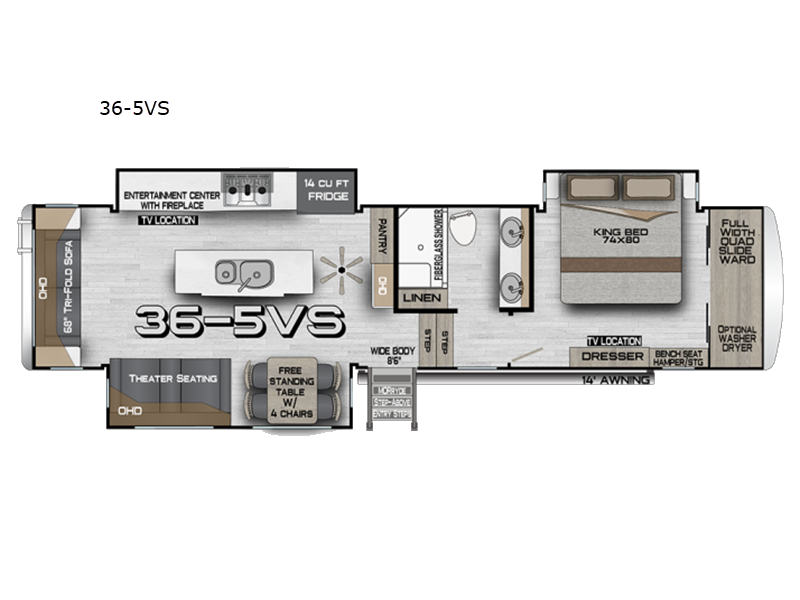

36-5VS Floorplan
